EC Testing Instruments
eddyMax® TheBoxNG
Our new
Universal Eddy Current Testing Instrument
Technical Data
- Frequency range:
10 Hz – 750 kHz (Extension to 2.5 MHz in progress) - Number of frequencies:
Working with one or two frequencies simultaneously.
The transmitter is configurable from an output power of -40 dB up to 0 dB in 0.1 dB increments. - Probe matching:
Adjustable preamplifier for optimal matching to the probe’s properties.
Selectable signal amplification in the range of 6 to 96dB with signal level indicator - TMT eddyMax signal multiplexer drive:
Up to 64 multiplexer channels
Faster sampling at low EC-frequencies than older generations of instruments, esp. interesting for use with remote-field-technique
Power supply
- Power supply:
External 24V with included 100-240V AC adaptor - Power delivery for probe rotor and other accessory
- +12V/2.5A
- ±15V/±200mA
- +5V/2.0A
Dimensions
- Dimensions
240x130x60 mm - Weight
Approx. 1.0 kg
- Development status 100%

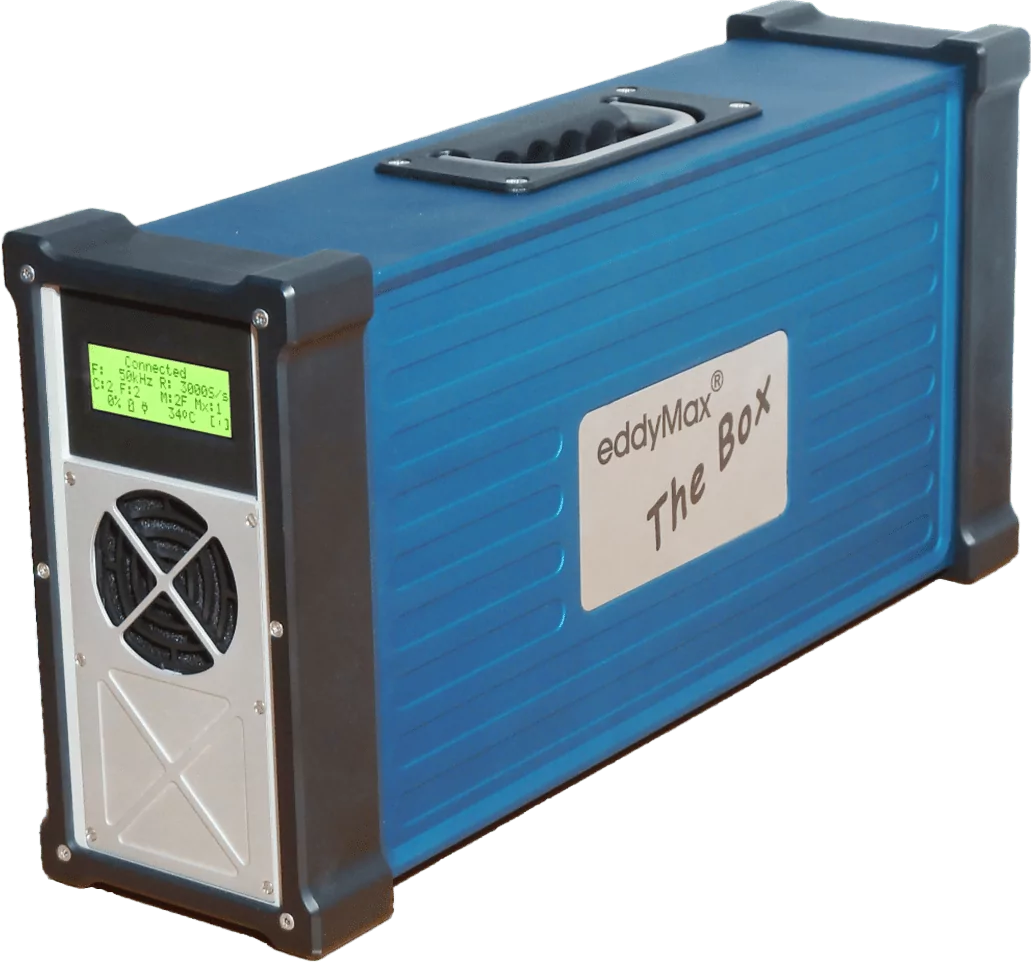

eddyMax® The Box
Digital 4-Frequency
Universal Eddy Current Testing Instrument
One single 4-Frequency / 2 Probe Channel Instrument
for all eddy current testing applications
Technical Data 1
Frequency Range
10 Hz up to 2.5 MHz
Number of Frequencies
4 adjustable frequency channels. Adaption of the transmitter output voltage to the probe, range -40 up to 8 dB adjustable in 0.1 dB increments
Probe Matching
Adjustable preamplifier for optimal matching to the sensitivity of the probe, range 0 up to 78 dB in 6 dB increments with signal level indicator
Amplifier
Total gain range from -48 up to 126 dB main gain range from -48 up to 126 dB, adjustable in 0.1dB increments, preamplifier range from 0 up to 78 dB, X/Y axis spread from -20 dB up to 20 dB adjustable in 0.1 dB increments
Phase
360° in 0.1°- increments
Filter
Adjustable low pass and high pass filter, range from 0.1 Hz up to 5000 Hz
Technical Data 2
Operation
Operation of The Box is remotely performed by an external PC, e.g. a notebook using the appropriate software for the inspection task.
Flexible Channels
Depending on the inspection task and the application used for the inspection several channels for signal processing including signal mixing channels are available
Signal Display
Coloured signal display in impedance and chart mode, switchable to display in impedance mode with several signal windows.
The dot can be displayed in store or nonstore mode with highlighted signal trace.
Signal display in C-Scan Mode
Coloured signal display in the impedance window and coloured C-Scan display in the chart window
Technical Data 3
Modes of Operation / Probe Types
The instrument can be used for static testing with hand probes or dynamic operation with rotation probes. All types of probes like SR-probe, bridge probes and reflection probes can be connected.
System In-/Outputs
- Ethernet remote connector
- EC probe connectors
- EC system connectors
Protocol Functions
- Hardcopy of the screen display
- Text editor for labeling the screen display prior to the output
- Protocol output with text editor and documentation of the instrument parameters of all used channels
Dimensions
Height: 225mm
Width : 125mm
Length: 460mm
Weight
approx. 6 kg
Battery
approx. 5-6 hours operation
exchangeable
Extensions and Accessoires
Optional Instrument Extensions
Software Extensions
Accessories
eddyMax® 4U III
Digital 4-Frequency
Universal Eddy Current Testing Instrument
One single 4-Frequency / 2 Probe Channel Instrument
for all eddy current testing applications
Technical Data 1
Frequency Range
10 Hz up to 2.5 MHz
Number of Frequencies
4 adjustable frequency channels. Adaption of the transmitter output voltage to the probe, range -40 up to 8 dB adjustable in 0.1 dB increments
Probe Matching
Adjustable preamplifier for optimal matching to the sensitivity of the probe, range 0 up to 78 dB in 6 dB increments with signal level indicator
Amplifier
Total gain range from -48 up to 126 dB main gain range from -48 up to 126 dB, adjustable in 0.1dB increments, preamplifier range from 0 up to 78 dB, X/Y axis spread from -20 dB up to 20 dB adjustable in 0.1 dB increments
Phase
360° in 0.1°- increments
Filter
Adjustable low pass and high pass filter, range from 0.1 Hz up to 5000 Hz
Technical Data 2
Operation
Operation of The Box is remotely performed by an external PC, e.g. a notebook using the appropriate software for the inspection task.
Flexible Channels
Depending on the inspection task and the application used for the inspection several channels for signal processing including signal mixing channels are available
Signal Display
Coloured signal display in impedance and chart mode, switchable to display in impedance mode with several signal windows.
The dot can be displayed in store or nonstore mode with highlighted signal trace.
Signal display in C-Scan Mode
Coloured signal display in the impedance window and coloured C-Scan display in the chart window
Technical Data 3
Modes of Operation / Probe Types
The instrument can be used for static testing with hand probes or dynamic operation with rotation probes. All types of probes like SR-probe, bridge probes and reflection probes can be connected.
System In-/Outputs
- Ethernet remote connector
- EC probe connectors
- EC system connectors
Protocol Functions
- Hardcopy of the screen display
- Text editor for labeling the screen display prior to the output
- Protocol output with text editor and documentation of the instrument parameters of all used channels
Dimensions
Height: 225mm
Width : 125mm
Length: 460mm
Weight
approx. 6 kg
Battery
approx. 5-6 hours operation
exchangeable
Extensions and Accessoires
Optional Instrument Extensions
Software Extensions
Accessories
